| 是否进口：否 | 产地：广东 | 加工定制：是 |
| 品牌：德迈盛 | 型号：DMS-JY8 | 类型：数字式 |

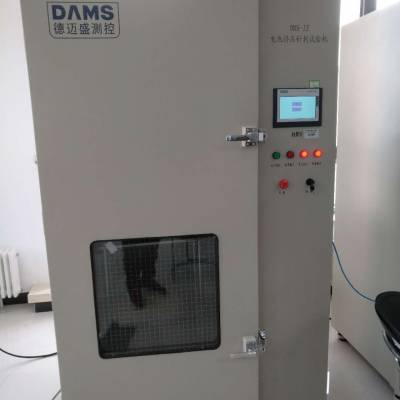

二、技术参数 Technical Specification
型号 Model | DMS-JY8 |
结构 Structure | 一体机结构，门上安装防爆锁+防爆链One machine structure, the door uses explosion-proof lock and explosion-proof chain |
压力 ure | 1KN-20KN（可调，可根据客户要求定制）Adjustable, customized according to requirements |
活塞直径Piston diameter | 32mm |
驱动方式Driving method | 液压Hydraulic pressure |
单位转换Unit conversion | Kg/N/Lb |
挤压/针刺行程Crush/Nail Penetration range | 0~200MM |
挤压精度 Crush accuracy | ±1% |
针刺测试速度Nail Penetration test speed | 0-40mm/s（可调） |
挤压保持时间 Crush hold time | 0~99小时99分钟99秒 |
控制方式 Control method | PLC触摸屏控制系统(7寸触摸屏)+远程遥控控制PLC touch screen control system (7-inch touch screen) + remote control |
测试空间 Testing space | W500xD300xH300 mm |
外形尺寸 Dimension | W940xD780xH1620 mm |
可视窗口 Viewing Window | 390 X 360mm(20mm厚钢化防爆玻璃+防爆不锈钢网) 390 X 360mm (20mm thick explosion-proof glass + explosion proof stainless steel mesh) |
电源 Power supply | AC 380V 50HZ |
功率 Power | 3.0KW |
USB接口 USB interface | 带USB接口，可将测试数据导出 With USB interface, test data can be exported |
辅助功能 Accessibility | 防爆泄压装置、排烟装置、防爆链Explosion-proof pressure relief device, smoke exhaust device, explosion-proof chain |
选购件 Options | 视频监控系统，温度、电压采集系统Video monitoring system, temperature, voltage acquisition system |
